EISEN 1440GE-MAX (2 spindle bore) Lathe, 3HP, With DRO made in Taiwan installed



EISEN 1440GE-MAX (2 spindle bore) Lathe, 3HP, W/ DRO made in Taiwan installed. EISEN 1440GE-MAX (2 spindle bore) Precision Lathe, 3HP, Made in Taiwan with One-Piece Cast Iron Base. 220V Single-Phase Machine Suitable for Garage Shop. BUILT FOR LONG LASTING PRECISION.

As a special promotion, we are including Free DRO with 1440GE lathe package. One-piece cast iron machine base for ultimate rigidity and vibration dampening. Hardened & ground bed ways.

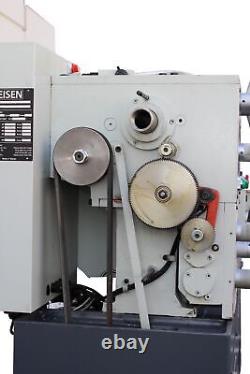

Hardened & ground gears in headstock. Precision taper roller bearings in headstock. Only world class name brand bearings are used in the spindle: NSK, Nachi, NTN or FAG. D1-4 camlock spindle with 1 1/2 spindle bore. 12-step spindle speed up to 2,000 rpm.

Oil bath headstock, gearbox and apron lubrication. EXTRA CAPACITY WHEN YOU NEED IT. Gap is removable to allow larger diameter parts up to 20.75. LOADED WITH OPERATOR FRIENDLY FEATURES. Leadscrew is equipped with safety pin.

Feed rod is equipped with over load safety clutch. Interlock mechanism prevents simultaneous feed load and leadscrew engagement. 50 2000 RPM (57 2300 rpm optional). 3 56 TPI (32 kinds).

0.4 7.0mm (32 kinds). 0.0026"/rev 0.0368"/rev. 0.0013"/rev 0.0184"/rev. Net / Gross Weight Approx.

2,350 lbs / 2,570 lbs. 3-Jaw Scroll Chuck 6 (150mm). 4-Jaw Independent Chuck 8 (200mm). Aloris-style Quick Change Tool Post. Drill Chuck 13mm (1/2) w/ Arbor.

If You have any questions regarding this item, please let us know we'll be happy to help.
